Key Facts
- up to 750°C
- adapted to all kind of non-ferrous bulk products
- fully electrical
Categories
Concept and design Engineering Research, development Screw dryers Reactors for mechanical processes Reactors for chemical processes Reactors for thermal processes Chemical recycling systems Thermal recycling systems Screws Belt conveyors, chain conveyors Heaters Heat exchangers Cooling equipment Sterilisation equipment and sterilisation systems
Product information
Spirajoule® is an exclusive and patented thermal treatment process which is the unique combination of 2 fundamental inventions: the endless screw conveyor and the heating resistance.

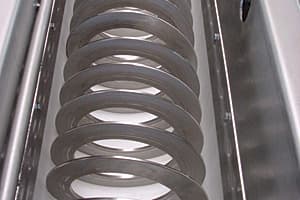

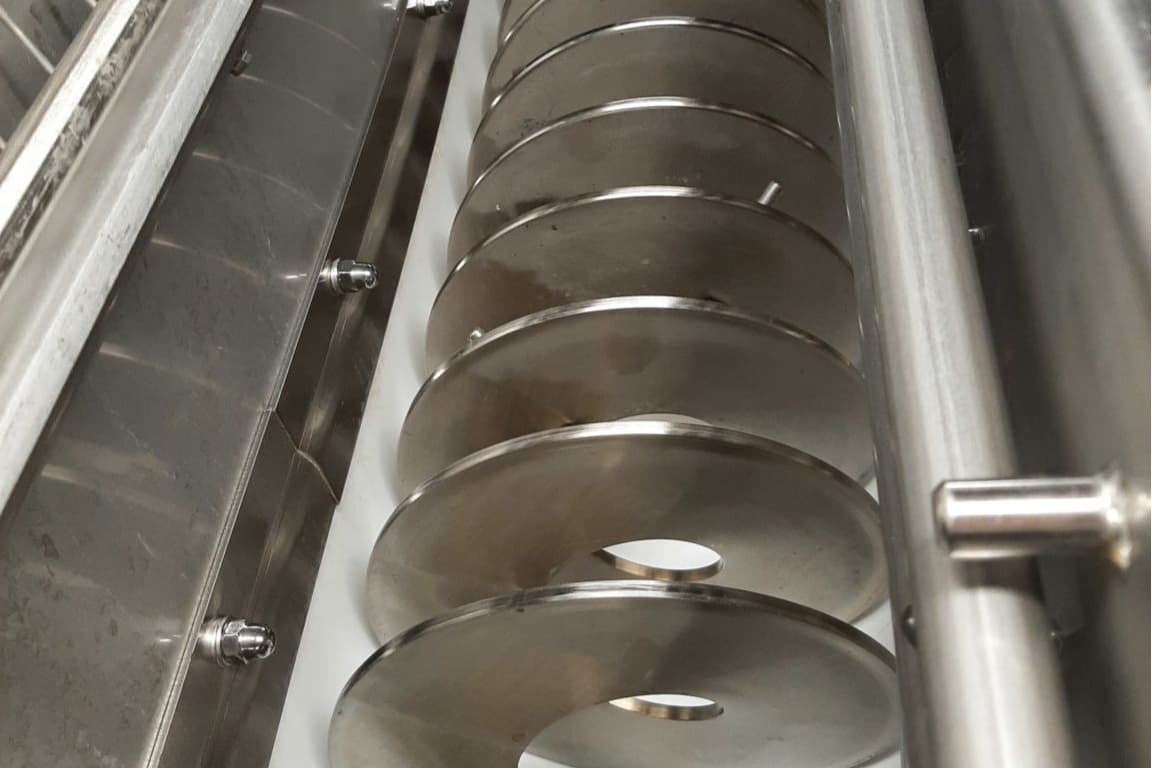

It is a dedicated equipment for a continuous thermal treatment in temperatures up to 850°C, basing on a hollow shaft screw conveyor heated by a low voltage current. The screw is made from electrically conductive material and is connected to an electricity power supply.

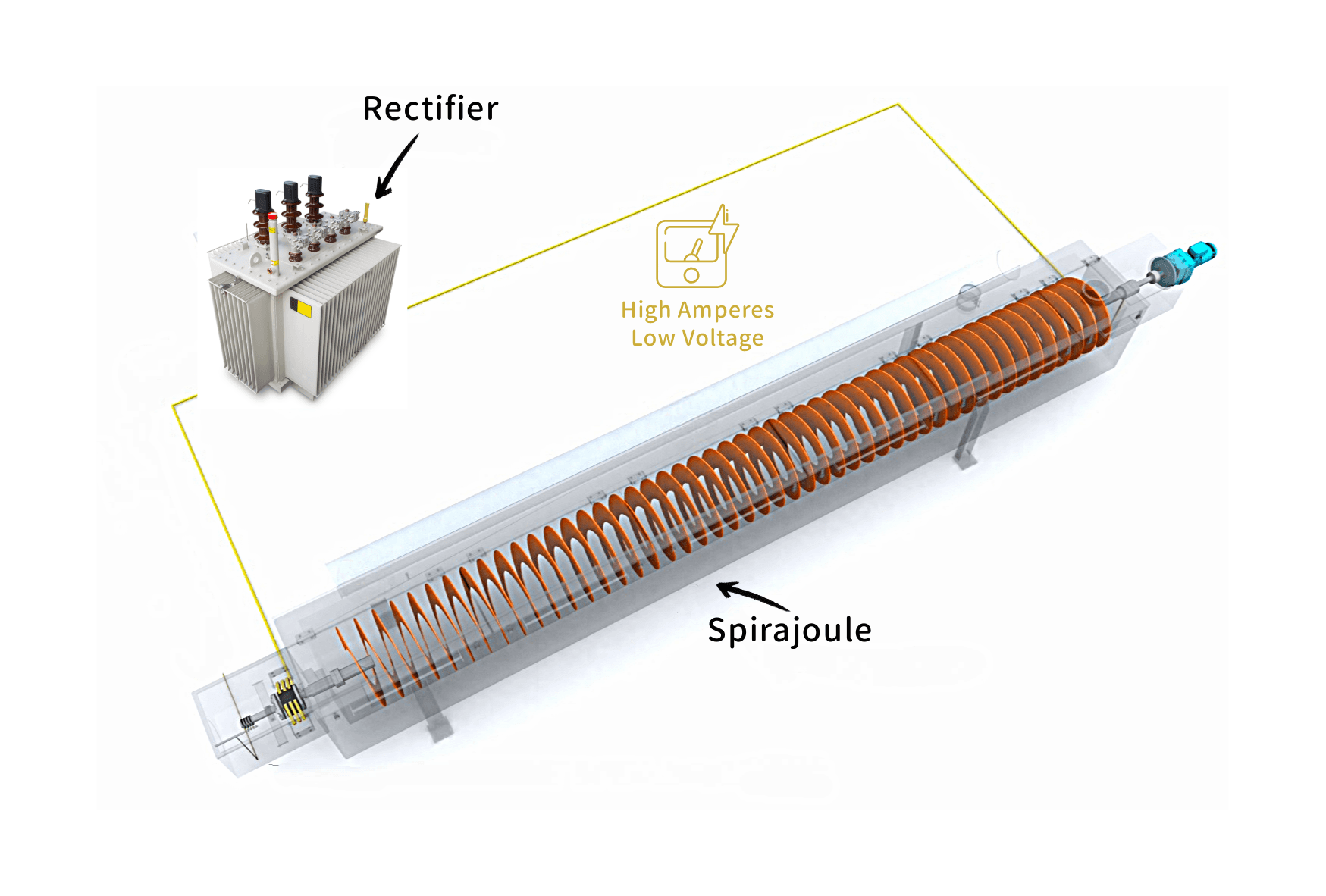

Electricity is conveyed from the power supply by the specially design components located at both sides of the screw. The passage of electronic current through the conductor (screw) generates heat, which is as a resul ...Download
