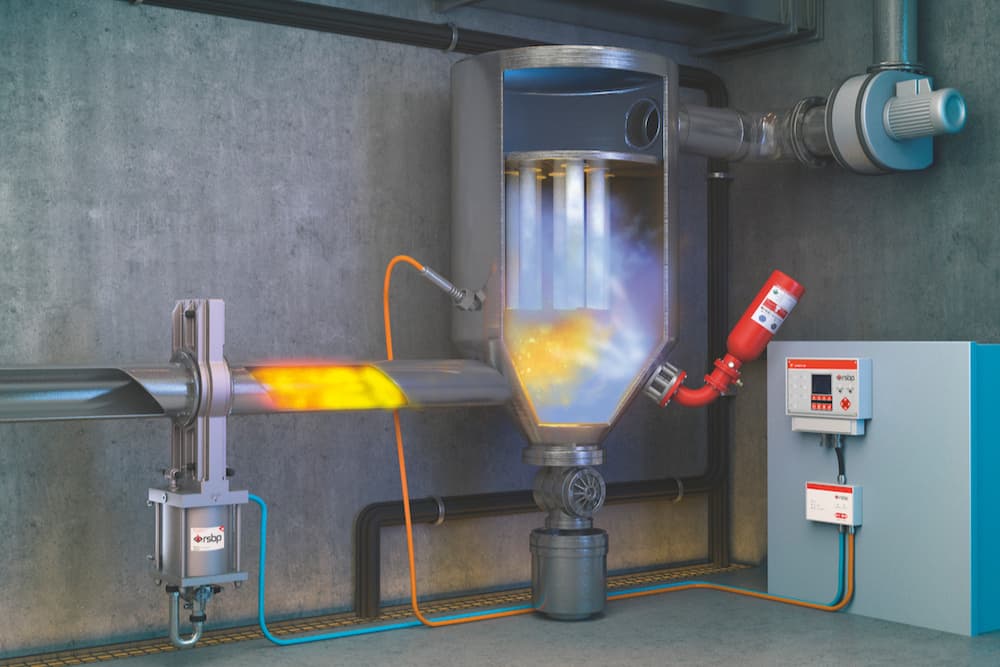

The GatEx quick-acting slide valve is part of a system used to prevent the propagation of an explosion between the individual units of the production technology. The GatEx is activated when an explosion is detected. Specially developed pressure and optical detectors constantly monitor the protected zones of the production technology. The DetEx pressure detector and the LumEx 1 or LumEx 4 optical detectors can be used for detection. Activation of the GatEx is also possible via the VENT PRO explosion venting device. The detector sends a signal to the control unit, which activates the closing mechanism. The quick-acting slide valve is closed pneumatically. When an explosion occurs, the pipe will be completely closed in milliseconds. GatEx can be us ...
