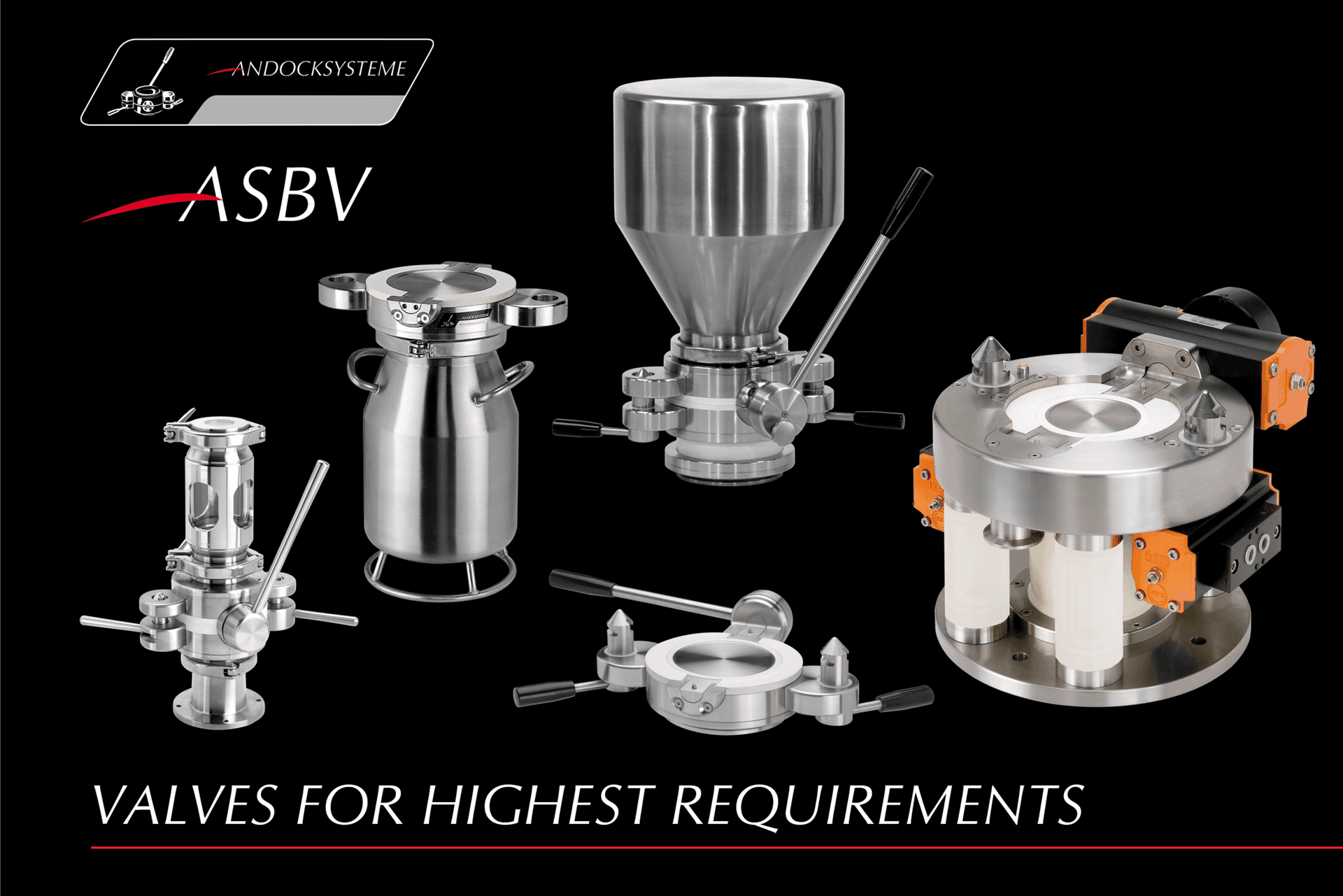

ASBV - Andocksysteme Split Butterfly Valves
Key Facts
- Automatic/pneumatic and manual operation available for High Containment (Certified OEL <1µg/m3) requirements
- Various high-grade materials and sealing qualities for specific process requirements. Safe material transfer of active (HPAPI) or toxic bulk like powders, granules, tablets and more for operator and product safety
- Unique, robust & simple design with widest diameter range: 50, 100, 150, 200, 250 and 300mm
Categories
Air lock systems Isolators, Containment Sample collector for laboratory Concept and design Production process Engineering GMP Research, development Dosing pumps Small component dosers Rotary vane feeders Bagging unit Filling equipment for canisters Filling equipment for drums Filling equipment for drums, IPCs and tanks
Product information
Well proven over years. With a technology that makes this docking system unique. Without compromises. ASBV Split Butterfly Valves consists of an active and a passive valve that are supported on two sides by high-grade precision bearings. The passive valve can be mounted on the inlet and/or outlet of a container (IBC, vessel, drum etc).
The active valve is operated either manually or automatically, is integrated into the filling or discharging side of the process station and can be equipped with a diversity of options. When docking, the GMP designed locking pins centre the active and passive valve on to each other. Both butterfly halves open simultaneously after docking. During filling and discharging the product is fully contained under perfect conditions ...Download
