NETZSCH Classifier Mill CSM
Key Facts
  • Finenesses from d97 10 µm to d97 150 µm (based on limestone)
  • Rotor impact mill with rotating integrated dynamic air classifier wheel provides exactly defined maximum particle size
  • Classifier wheel with exchangeable, simultaneously rotating immersion tube to achieve highest finenesses, unlimited adjustment
Categories
Impact mills

Product information

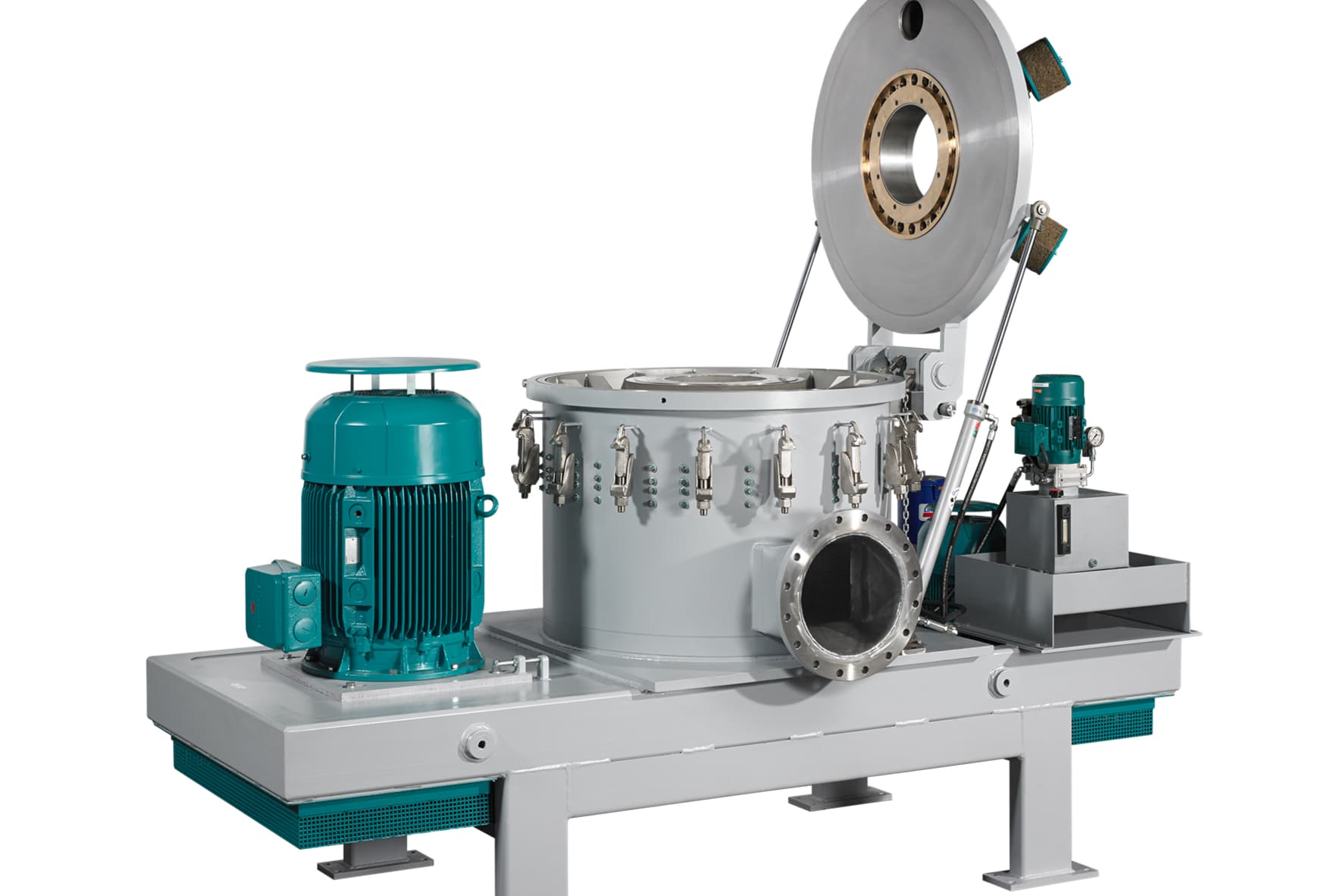

The CSM classifier mill combines a mechanical impact mill with an integrated dynamic air classifier.

The grinding is performed between a peripheral grinding track and the rotating beater gear. Due to the integrated classifier wheel, grain sizes free of coarse particles can be achieved without the disadvantages of an external grinding and classifying circulation system. Internal classification of the coarse material results in a more stable and energy efficient process than a mill with an external classification circuit.

Through this highly developed classifier technology with its horizontal classifier wheel, a rotationally symmetrical classification is achieved ...
