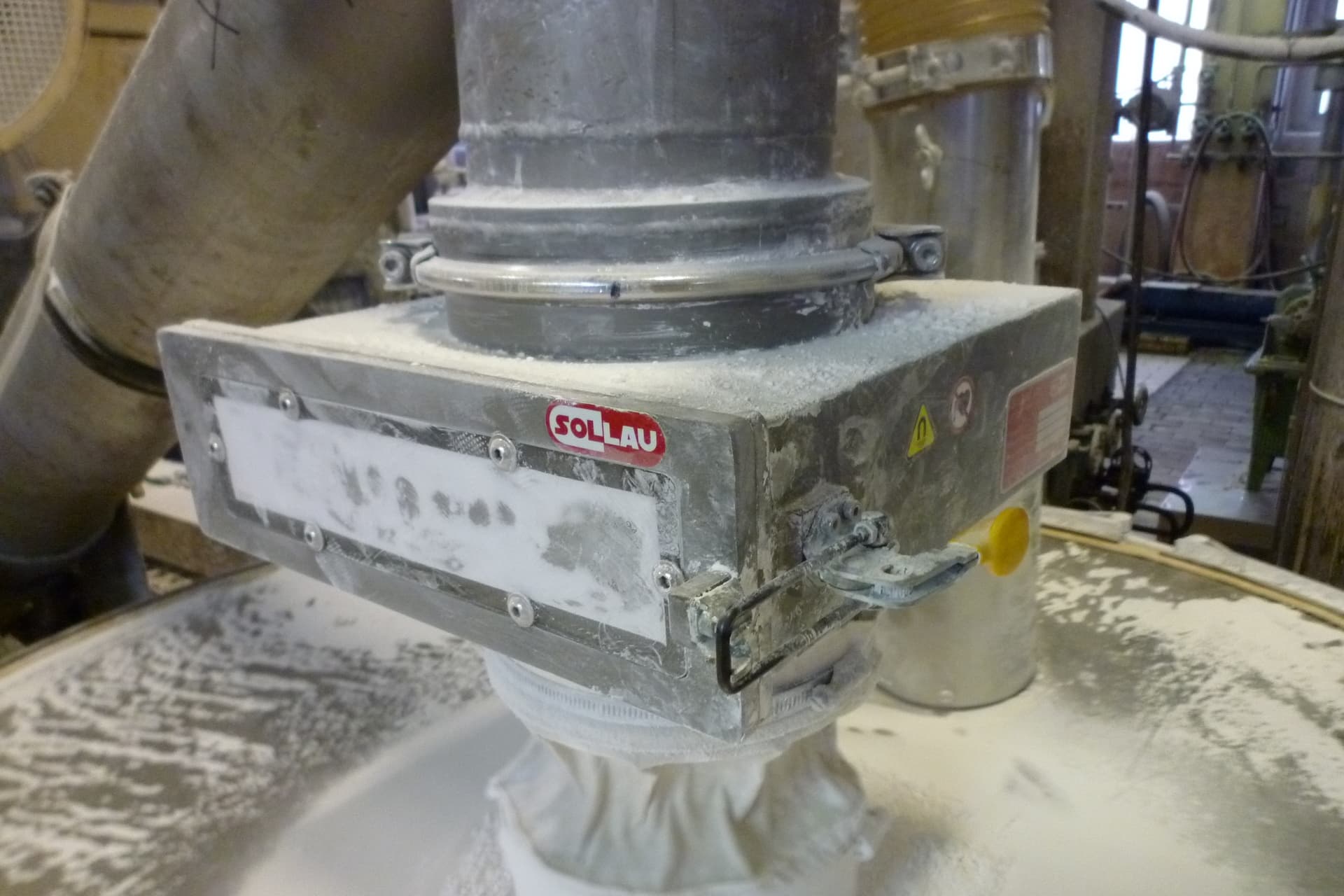

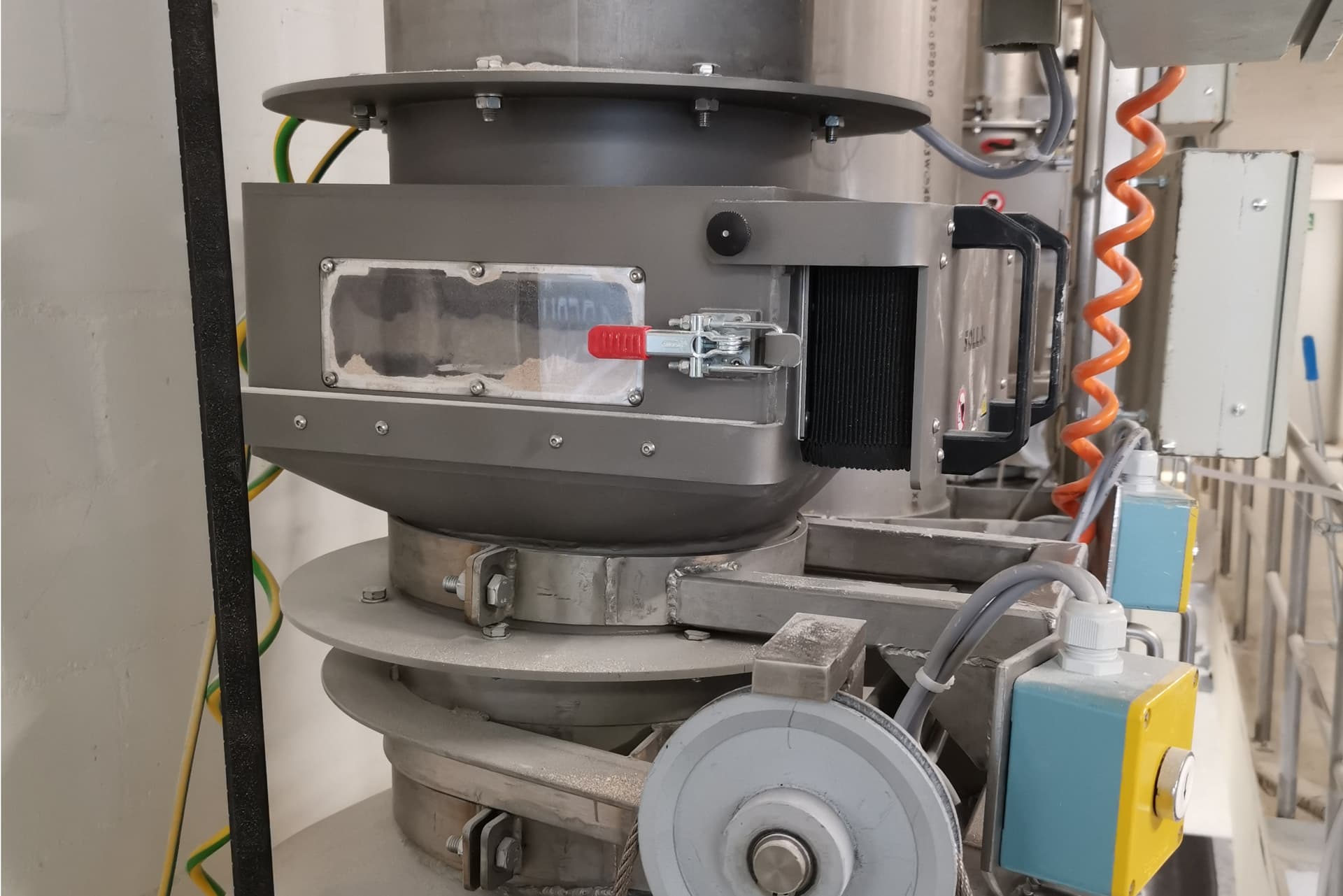

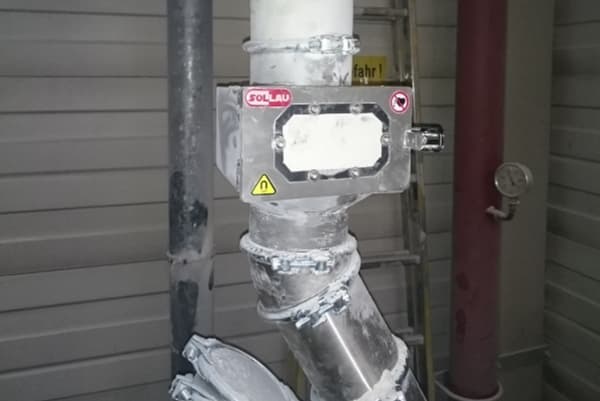

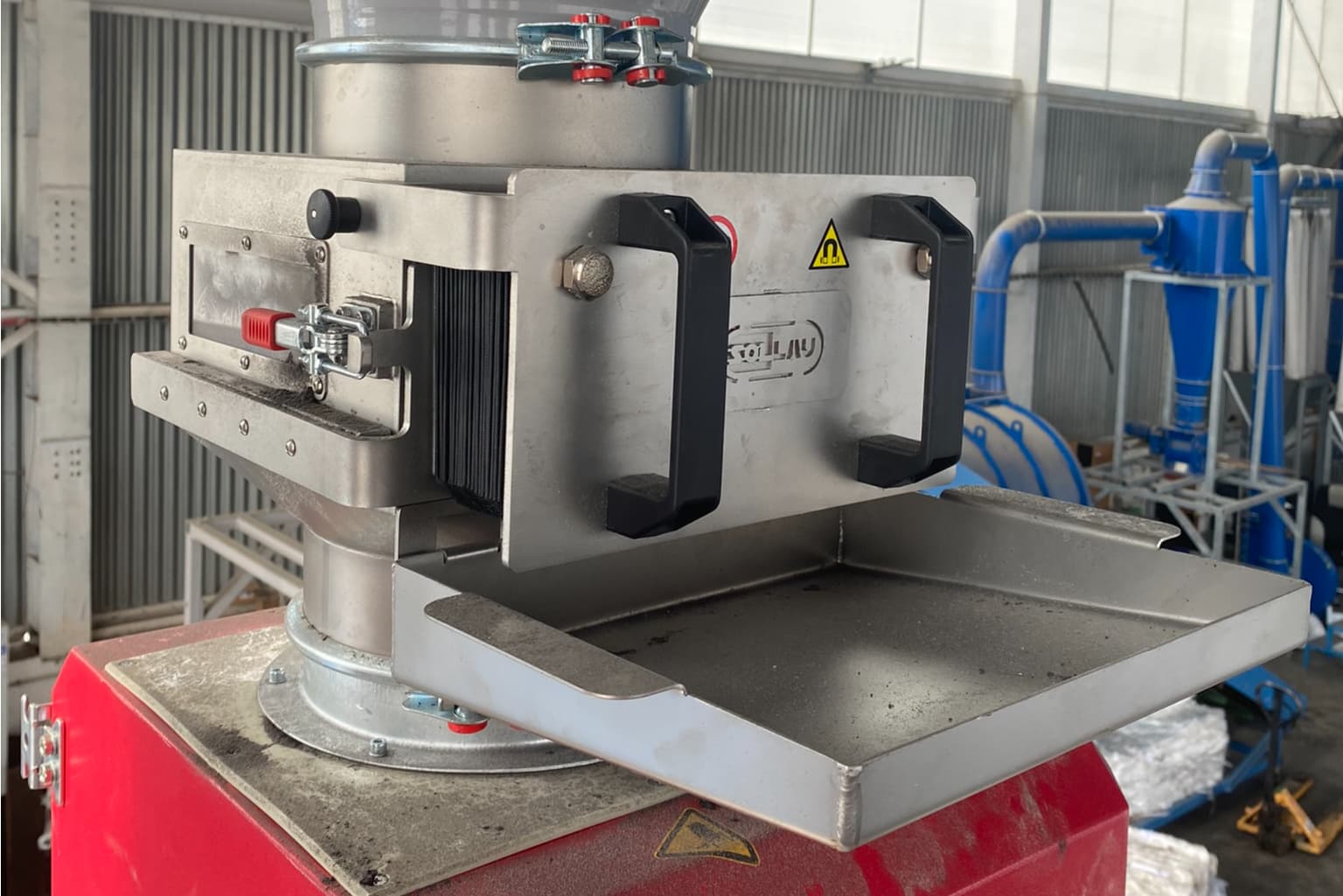

A drawer magnetis designed to separate in a quick and easy way magnetic iron contamination from free-flowing substances of good bulk properties and to protect the machinery that subsequently treats these materials.

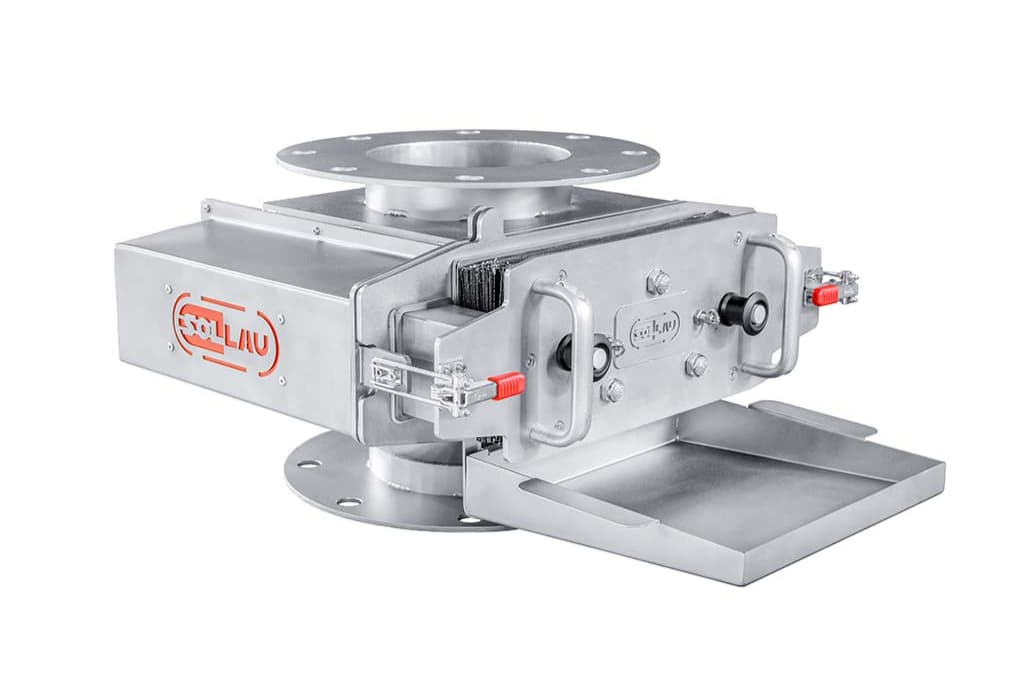

Design of the grate magnet in housing

The basic elements of the magnetic grate separator in housing are one or two rows of magnetic grates (consisting of stainless steel tubes). While the material flows over the magnetic tubes, a very strong magnetic field (generated by the neodymium NdFeB magnets inside of the tubes) traps all metallic particles on the surface of the tubes. The magnetic grates inside of the housing are placed one above the other and the upper set of tubes consists of one tube less. The grate sieve - created in this way – is in a ve ...
