Key Facts
- Packaging material: depending on design open-mouth or valve bags, PE bags with and without side gusset, aluminum compound bags, paper bags Capacity: 80-160 bags/hour depending on product properties, packaging materials and operator skill Bag weight: 10-50 kg Weighing range: 10-52 kg at a resolution of 0.020 kgIn accordance with the calibration law, Directive 2004/22/EC
Categories
Bagging unit
Product information

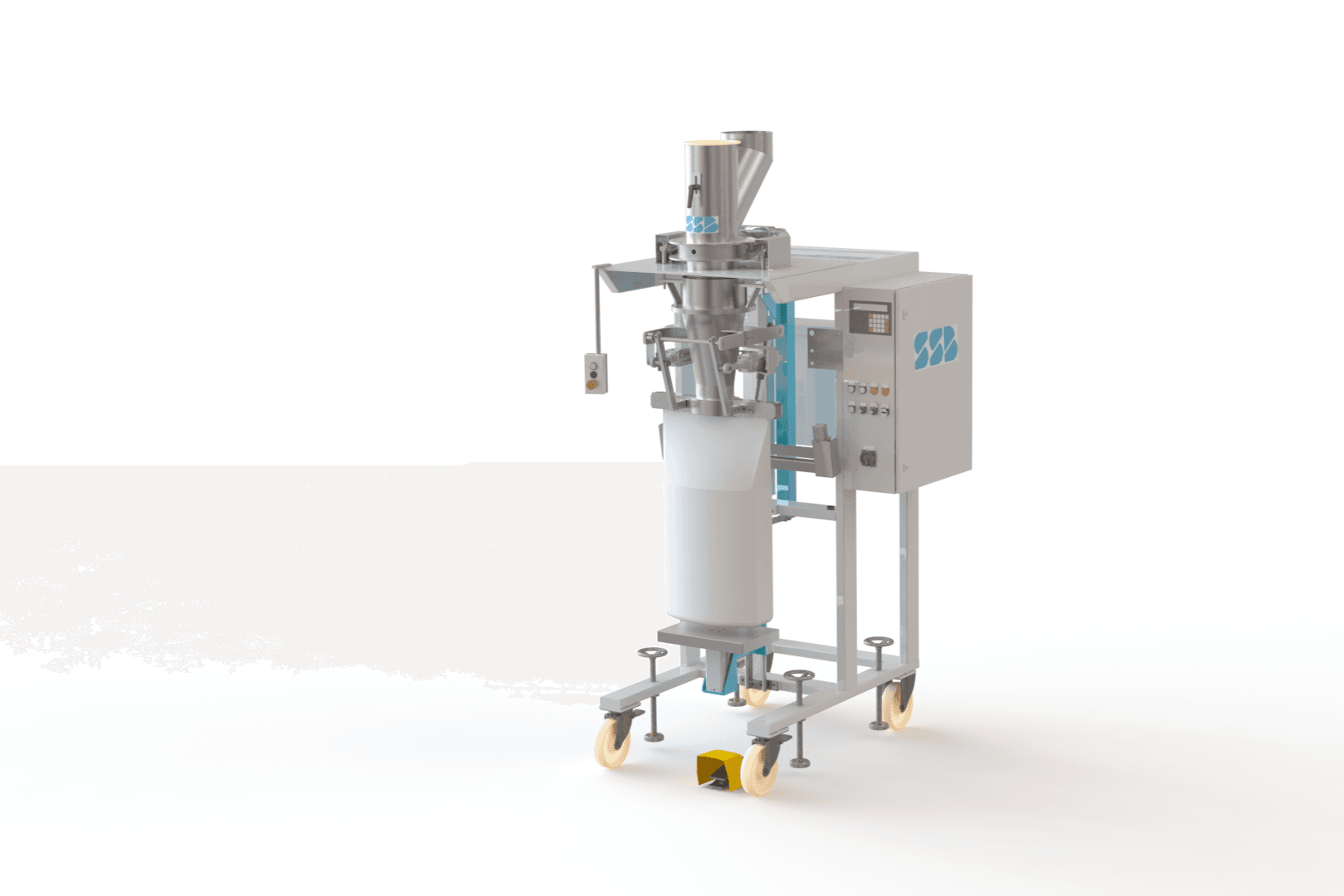

The Multifill BE-25 gross bagging scale is a modular system for different packaging materials and different products. All types of open/valved bags can be filled with the Multifill BE25. Different products with different flow properties can be fed by different dosing systems, such as dosing flap, dosing screw or vibrating chute.
The interchangeable nozzle system allows different filling nozzles to be mounted on the scale for filling open-mouth or valve bags. The bayonet quick-change flange as well as the corresponding pneumatic and electric couplings allow a quick and easy nozzle change.
The scale is easy and simple to clean due to the simple and adaptable desi ...Watch our product video
Multifill BE 25 gross bagging scale Video
